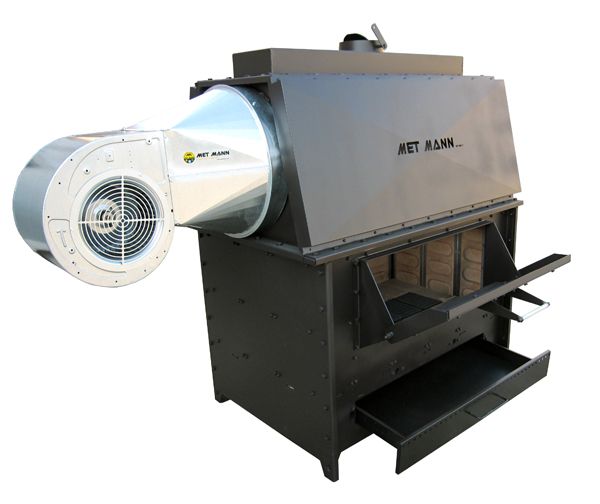

Industrial wood stove with centrifugal fan of 100 kw of heat power
Its use is suitable for all types of non-domestic premises where the fuel to be used is firewood, remains of wooden pallets, shells, etc ...
Main features:
- Performance over 80%.
- Made of thick steel.
- Large capacity combustion hearth.
- Interior of the home in refractory bricks to avoid overheating in the areas most exposed to heat.
- Grill of the hearth of combustion in steel resistant to high temperatures.
- Shot regulator applied to the smoke outlet.
- Wide ash collection drawer.
- Reversible air fan on the right or left.
- Electrical voltage at 230V / I / 50Hz.
- Its constructive shape greatly facilitates its maintenance and cleaning.
- Equipment with CE certificate.
Technical data:
- Nominal thermal power: 100 kW
- Yield: 80%
- Centrifugal air fan.
- Air flow: 3,400 m3/h
- Available pressure: 100 Pa
- Electric power: 0.59 kW
- Electrical voltage: 230V/I/50Hz
- Air drive diameter: 530mm
- Load mouth: 835x280mm
- Chimney diameter: 200mm
- Overall dimensions (Width / Depth / Height): 1015x2110x1630mm
- Weight: 800 kg
